xinyun Changeable Frequency Fully Automatic Paper Cutting Machine Multi Channels

Product Categories
Fujian Xinyun Machinery Development Co., Ltd.
Contact Now

xinyun Changeable Frequency Fully Automatic Paper Cutting Machine Multi Channels

  • 1
  • 2
  • 3

Brand Name : xinyun

Model Number : XY-AI-280

Certification : CE

Place of Origin : fujian

MOQ : 1 set

Price : FOB XIamen Price30000-33000USD

Payment Terms : T/T

Supply Ability : 200sets/year

Delivery Time : 70-80days

Packaging Details : Spraying antirust oil on machine surface and cover PE film,then packed by seaworthy Export Packing Wooden pallet, ensure that the goods will safely arrive at the erection or construction site without any damage.

Log Roll Width : 2200/2800mm

Log Roll Diameter : 100-120mm(Other Size Can Be Specified)

Speed : 100-120cuts/Min

Grinding System : Pneumatic Sharpen, Grinding Time Can Be Set

Driving System : Delta Servo Motor

Power : 11kw

Overall Dimension : 6500*2500*2000mm

Blade Diameter : 610*68.3*3.8mm

Voltage : 380V 50Hz 3phase

Weight : About 4000kg

Contact Now

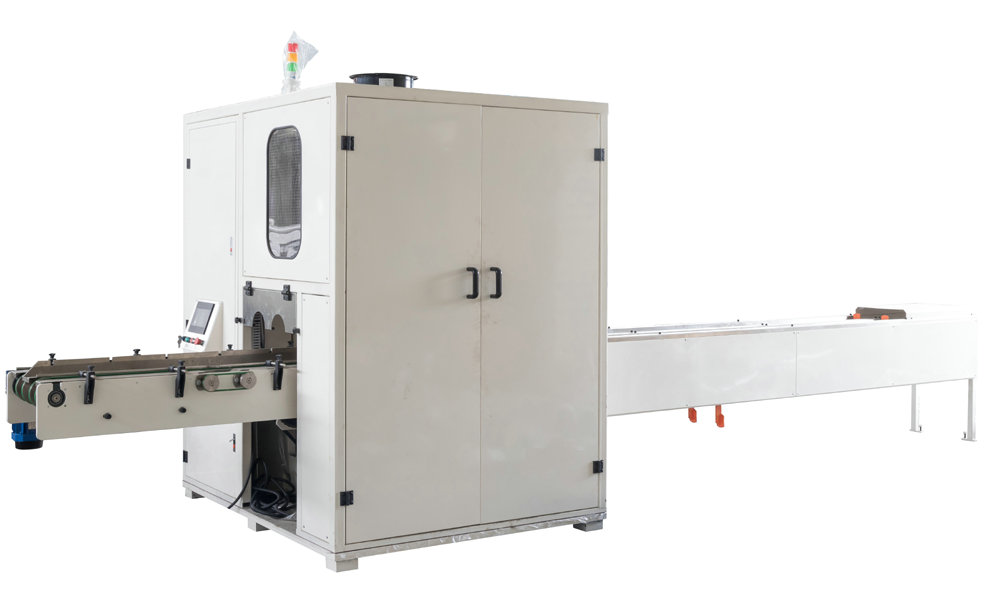

XY-AI-280 Full Automatic Double Channels Toilet Paper Roll Cutting Machine

Outline

XY-AI-280 Double Channel Log Saw Machine is used for cutting the toilet paper roll and kitchen towel paper roll, it's with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.

Product Parameters
Log roll width 2200/2800mm (Other size can be specified)
Log roll diameter 100-120mm (Other size can be specified)
Design speed 120cuts/min
Stable speed 100cuts/min
Grinding system Pneumatic Sharpen, grinding time can be set
Driving system Delta Servo Motor
Power 11KW
Overall dimension 6500*2500*2000mm(Other size depends on model and configuration)
Blade diameter 610*68.3*3.8
Voltage 380V 50HZ 3phase
Weight about 4000KG

Video Link:https://youtu.be/wV8g7lmB90k
xinyun Changeable Frequency Fully Automatic Paper Cutting Machine Multi Channels
Feature and Functions
1. Automatic blade grinding system, quickly setting parameter on PLC..
2. Sharpen wheel can grinding according to the wear degree.
3. Two Logs are feeding automatically, cutting then pushing.
4. Shortcuts can be kicked off from the quality products.
5. Equipped with two sets of clamping channels, easy to change.
Detailed Picture
xinyun Changeable Frequency Fully Automatic Paper Cutting Machine Multi Channels

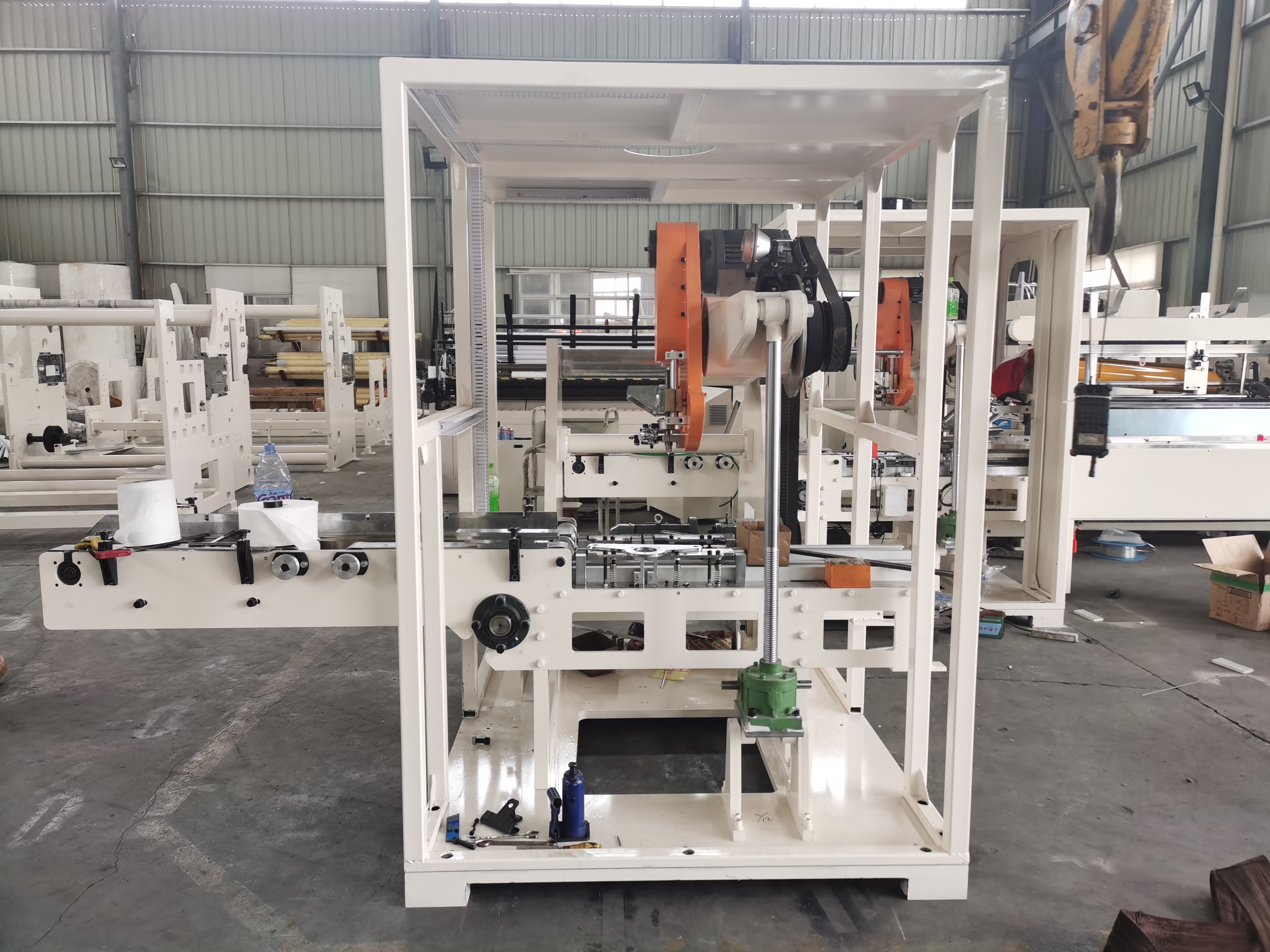

Workshop

xinyun Changeable Frequency Fully Automatic Paper Cutting Machine Multi Channels

After Sales Service:

Why choose machines from Fujian Xinyun Machinery Development Co.,Ltd?
1.Good quality of machine with reasonable price.
2.Good service:Any question from customer will by replied within 24 hours.
For all the machines we sell, we will offer one-year guaranteen for free and all life-long maintenance.
We deliver a USB dish of Operation Video with machine, it will help customers to work the machine easily.
After the machines arrive, the sellers shall send technicians to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportation and accommodation in buyer's city.

Company Profile:

Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
